Flat Products

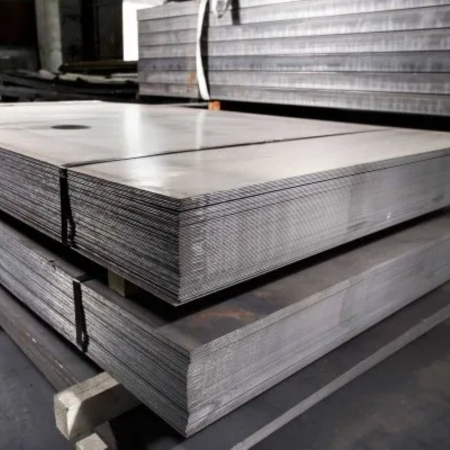

H.R Sheets

Specifications:

Thickness (mm) Weight (kg/sq.m)
1.6 12.55
1.8 14.15
2 15.7
2 15.7
2.25 17
2.3 18.05
2.5 19.6
2.8 22
2.9 22.75
3.15 24.75
3.8 27.9
4 31.4

G.C Sheets

Specifications:

Thickness (mm) Width (kg/sq.m)
0.4 800, 880, 885
0.5 800, 880, 885
0.55 800, 880, 885
0.63 800, 880, 885
0.8 800, 880, 885
0.9 800, 880, 885
1 800, 880, 885
1.25 800, 880, 885
1.4 800, 880, 885

G.P Sheets

Specifications:

Thickness (mm) Width (mm)
0.4 900, 1000
0.5 900, 1000, 1100
0.55 900, 1000, 1100
0.63 900,1000, 1100, 1200, 1220
0.8 900, 1000, 1100, 1200, 1220
1 900, 1000, 1100, 1200, 1220
1.25 900, 1000
1.4 900, 1000, 1100, 1200, 1220
1.6 900, 1000, 1100, 1200, 1220

H.R  Plates

Specifications:

Thickness (mm) Width (kg/sq.m)
5 39.25
6 47.1
8 62.8
10 78.5
12 94.2
14 109.9
16 125.6
18 141.3
20 157
22 172.7
25 196.25
28 219.8
32 251.2
36 282.6
40 314
45 353.2
50 392.5
56 439.6
63 494.5
71 557.4
80 628

C.R Sheets

Specifications:

Thickness (mm) Width (mm)
0.4 900, 1000
0.5 900, 1000, 1100
0.55 900, 1000, 1100
0.63 900,1000, 1100, 1200, 1220
0.8 900, 1000, 1100, 1200, 1220
1 900, 1000, 1100, 1200, 1220
1.25 900, 1000
1.4 900, 1000, 1100, 1200, 1220
1.6 900, 1000, 1100, 1200, 1220
